TECHNICAL SPECIFICATION
--------------------------------------------------------------------------------------------------
Engine
Type Air-cooled, 4-stroke single cylinder OHC
Displacement 97.2 cc
Max. Power 5.74 KW (7.8 Ps) at 7500 rpm
Max. Torque N-m
Bore x Stroke 50.0 x 49.5mm
Carburettor Side draft, variable venturi type
Compression Ratio 9.0 : 1
Starting Kick start / Self start
Ingnition DC - Digital CDI
Transmission & Chassis
Cluch Multi-plate wet
Gear box 4 Speed constant mesh
Chassis Type Tubular double cradle frame
Suspension
Front Telescopic hydraulic shock absorbers
Rear Swing arm with adjustable hydraulic shock absorber
Brakes
Front Brake Internal expanding shoe type (130 mm)
Rear Brake Disc Internal expanding shoe type (110 mm)
Wheels & Tyres
Rim Size Front 18 x 1.6 Spoke wheel / Cast wheel
Rim Size Rear 18 x 1.6 Spoke wheel / Cast wheel
Tyre Size Front 2.75 x 18 - 4 PR / 42 P
Tyre Size Rear 2.75 x 18 - 6 PR / 48 P
Electricals
Battery 12V 3Ah
Head Light 12V-35W/Halogen bulb, Trapezoidal, MFR
Tail Stop Lamp 12V - 5 / 21 W, MFR
Turn Signal Lamp 12V - 10W (Amber bulb) x 4 nos, MFR, clear lens
Dimensions
Length 1965 mm
Width 720 mm
Height 1095 mm
Wheelbase 1235 mm
Saddle Height 785 mm
Ground Clearance 160 mm
Fuel Tank Capacity 9.5Ltrs
Reserve 1.8 Ltrs
Kerb Weight 109 kg, (Kick), 112 Kg (Self)
Minimum Turning 2.10 mtrs.

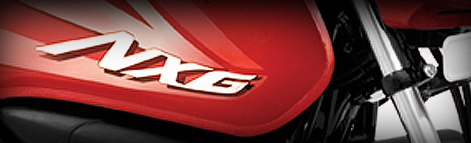

Features
> Next generation aerodynamic design with Black alloy wheels. > Power start
> Next generation attractive meter console and visor > Next generation styling
> Next generation clear lens winkers
> Next generation advanced pro series APDV engine for better power, better mileage & better acceleration
