TECHNICAL SPECIFICATION
--------------------------------------------------------------------------------------------------
Engine
Type Air cooled, 4- stroke single cylinder OHC , Self start
Displacement 149.2cc
Max. Power 9.7 kW (13.2 Ps) @ 7500 rpm
Max. Torque 13.4 N-m @ 5000 rpm
Ingnition D.C - CDI Ignition System
Transmission & Chassis
Gear box 5 Speed constant mesh
Suspension
Front Telescopic Hydraulic Shock Absorbers
Rear Swing Arm with Mono Suspension with Nitrox
Brakes
Front Brake Dia 240 mm Disc
Rear Brake Drum Internal expanding shoe type (110 mm)
Electricals
Battery 12 V - 4 Ah, MF Battery
Head Light 12 V - 35 W / 35 W - Halogen Bulb (Multi -Reflector Type)
Tail Stop Lamp 12V - 0.5 W / 4.1 W LED Lamp
Turn Signal Lamp 12 V - 10 W (Amber Bulb) x 4 nos (Multi-Reflector-Clear Lens)
Dimensions
Wheelbase 1360mm
Ground Clearance 245 mm
Fuel Tank Capacity 11.1 Litre (Min) - 2.6 Litre (Usable Reserve)
Wheels & Tyres
Tyre Size Front 90 / 90 x 19 - 52 P
Tyre Size Rear 110 / 90 x 17 - 60 P
Features
> High torque ATFT engine and high ground clearance for rough terrain riding
> Raised fender and large diameter front wheel with “stud pattern’ type tyres
> Nitrox gas-filled mono shock rear suspension
> Straight pull spokes at the rear for tough terrains
> Low maintenance sealed endless drive chain

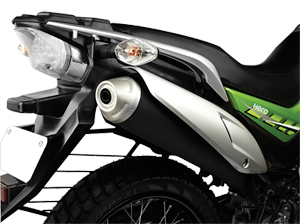

> Sporty high mount muffler
> Digital-analog combo meter console with ‘service due’ indicator
> Sharp edgy graphics
> Motocross seat
Nitrox gas-filled mono shock rear suspension. Motocross seat.
High torque ATFT engine and high ground clearance for rough terrain riding
Digital-analog combo meter console with ‘service due’ indicator
