TECHNICAL SPECIFICATION
--------------------------------------------------------------------------------------------------

Engine

Type Air cooled 4 - stroke single cylinder OHC
Displacement 97.2 cc
Max. Power 5.74 kW ( 7.8 Ps ) at 7500 rpm
Max. Torque 0.82 Kg-m ( 8.04 N-m ) @ 4500 rpm
Bore x Stroke 50.0 x 49.5 mm
Compression Ratio 9.0 :1
Starting Kick start
Ingnition DC - Digital CDI

Transmission & Chassis
Cluch Multiplate wet
Gear box 4 Speed constant mesh
Chassis Type Tubular double cradle frame

Suspension
Front Telescopic hydraulic shock absorbers
Rear Swing arm with 2 step adjustable hydraulic shock absorber

Brakes
Front Brake Internal expanding shoe type ( 130 mm ) Non -asbestoes
type
Rear Brake Disc Internal expanding shoe type ( 110 mm ) Non -asbestoes
type

Wheels & Tyres
Rim Size Front 18 x 1.6 Spoke wheels
Rim Size Rear 18 x 1.6 Spoke wheels
Tyre Size Front 2.75 x 18 - 4 PR / 42 P
Tyre Size Rear 2.75 x 18 - 6 PR/ 48 P

Electricals
Battery                 12 V -2.5 Ah
Head Light 12V - 35/35W ( Halogen bulb ) , Round MF
Tail Stop Lamp R 12V - 5 / 21 W - MFR
Turn Signal Lamp 12V - 10W x 4 nos - MFR

Dimensions
Length 1965 mm
Width 720 mm
Height 1045 mm
Wheelbase 1235 mm
Saddle Height 805 mm
Ground Clearance 165 mm
Fuel Tank Capacity 10.5 Ltrs
Reserve 1.8 Ltrs
Kerb Weight Kick 109 kgs.
Features

>A new engine for better performance.                                                          > Powerful headlight provides much improved visibility.
> New and advanced adjustable shock absorbers.                                   > Extra-wide seats for extra riding comfort.
> Padlock provision for theft security.                                                            > Matte black for style & good looks.
> Stylish muffler protector.                                                                               > Attractive graphics.

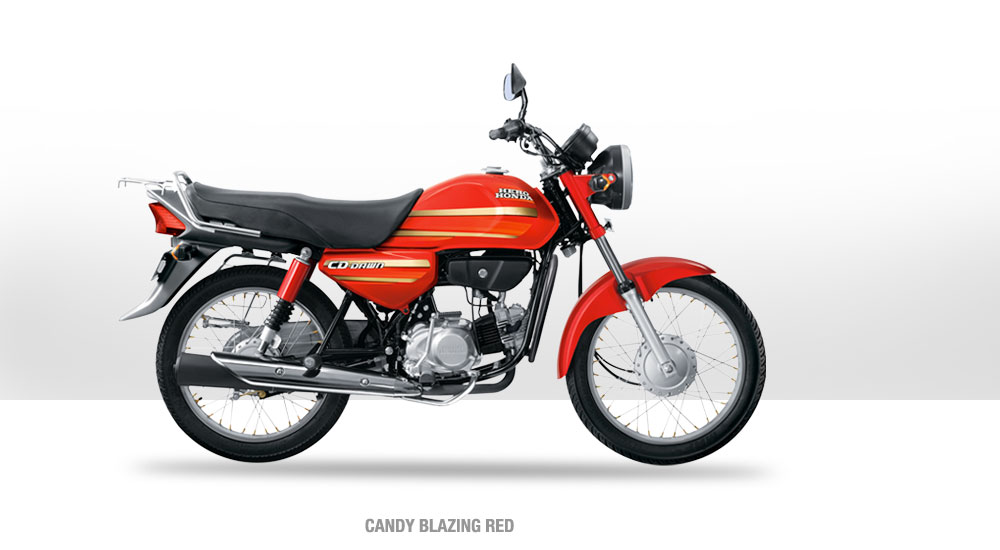

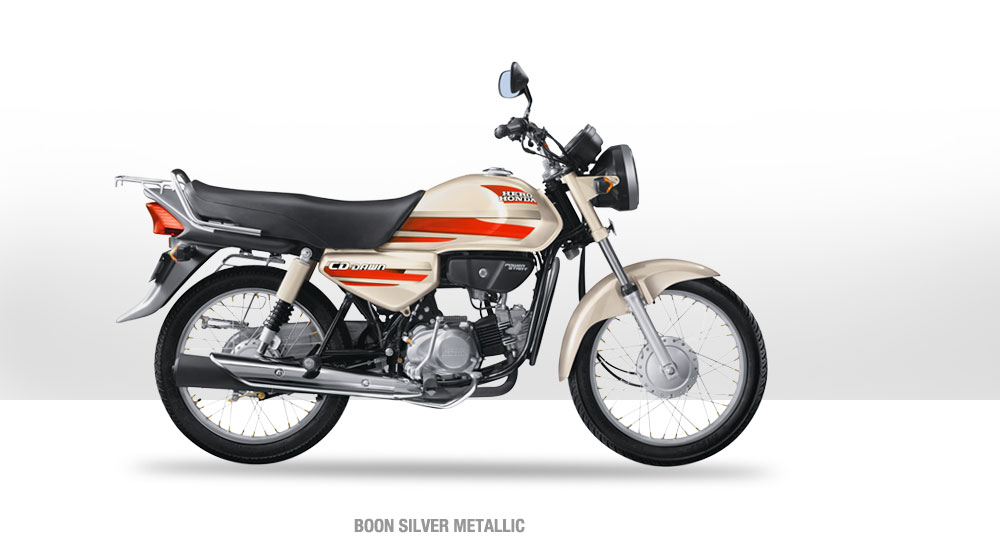

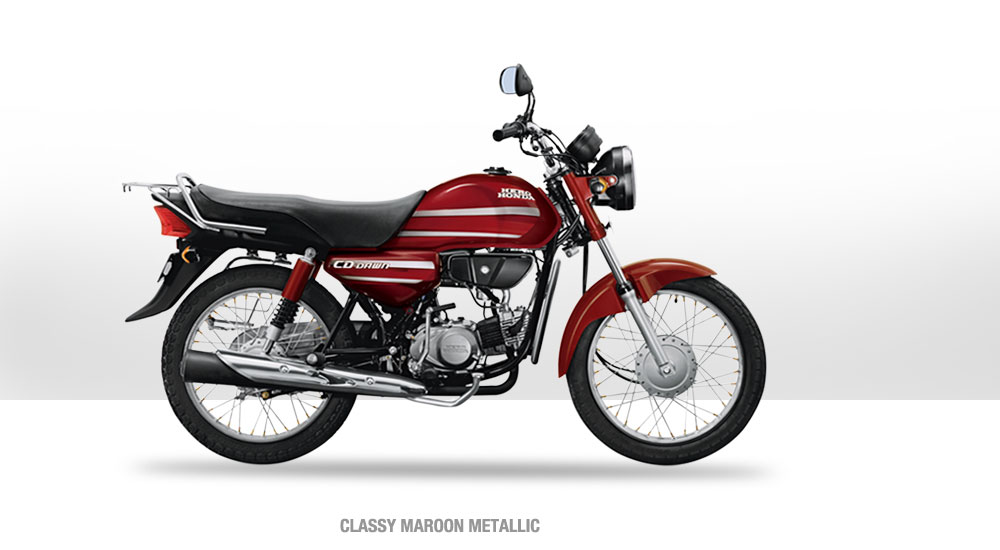

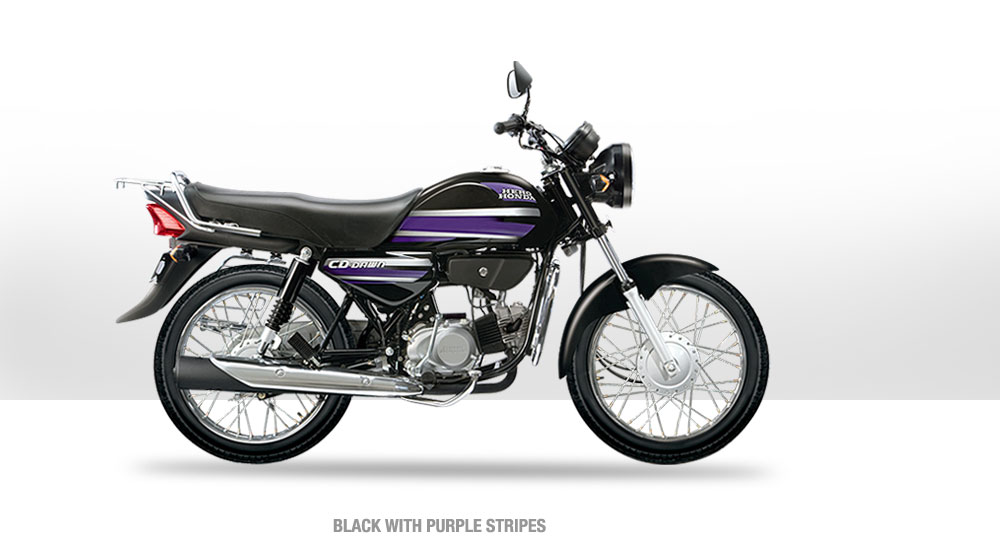

CD Dawn
