TECHNICAL SPECIFICATION
--------------------------------------------------------------------------------------------------

Engine

Type                 Air cooled, 4 - stroke single cylinder OHC
Displacement      97.2 cc
Max. Power           5.74 kW (7.8 Ps) at 7500 rpm
Max. Torque          0.82 Kg-m (8.04 N-m) @4500 rpm
Bore x Stroke        50.0 x 49.5 mm
Compression Ratio         9.0: 1
Starting                 Kick start / Self start
Ingnition                 DC digital CDI

Transmission & Chassis
Cluch Multi-plate wet
Gear box 4 Speed constant mesh
Chassis Type Tubular double cradle frame

Suspension
Front Telescopic hydraulic shock absorbers
Rear Swing arm with 2 step adjustable hydraulic shockabsorber

Brakes
Front Brake Internal expanding shoe type ( 130 mm )
Rear Brake Disc Internal expanding shoe type ( 110 mm )

Wheels & Tyres
Rim Size Front 18 x 1.6 Spoke wheels / Cast wheels
Rim Size Rear 18 x 1.6 Spoke wheels / Cast wheels
Tyre Size Front 2.75 x18 - 4PR/42 P
Tyre Size Rear 2.75 x 18 -6 PR/48 P

Electricals
Battery                                 12 V -3 Rh
Head Light                 12v - 35/35W ( Halogen bulb ), Rectangular MFR
Turn Signal Lamp 12v- 10W x 4 nos - MFR

Dimensions
Length                      1965 mm
Width                      720 mm
Height                      1045 mm
Wheelbase                 1235 mm
Saddle Height                 805 mm
Ground Clearance              165 mm
Fuel Tank Capacity              10.5 ltrs
Reserve                                 1.8 ltrs
Kerb Weight                Kick/Self - 109/112 kgs
Features

> New engine for enhanced performance & stress-free ride.
> Trapezoidal multi-reflector headlight for enhanced visibility provides better safety & trendy trapezoidal shape lends more appeal to the bike.
> Broad visor with aerodynamic shape.
> Cool 3D graphics & knee grip makes the bike look very attractive & a comfortable seating posture provides a stress-free ride.
> Extra wide seat, more seating space provides better riding comfort for both driver & pillion rider.
> Adjustable rear suspension ease in adjustment of rear shockers provides riding comfort in different terrains.

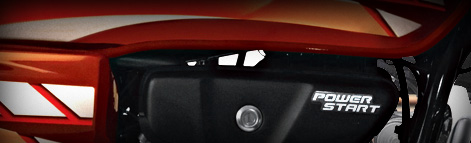

> POWER START: a new era of convenience.
> Stylish 5-spoke alloy wheels for better aesthetics.
> Multi-reflector taillight higher visibility provides better safety at night.
> Introducing maintenance-free battery for the peaceful ride.
CD Deluxe
