TECHNICAL SPECIFICATION
--------------------------------------------------------------------------------------------------

Engine

Type                  Air cooled, 4 - stroke single cylinder
Displacement     149.2 c.c
Max. Power        10.6 kW (14.4 Ps) @ 8500rpm
Max. Torque       12.80 N - m @ 6500 rpm
Bore x Stroke     57.3 x 57.8 mm
Carburettor         C.V Type
Compression Ratio 9.1 : 1
Starting            Self Start
Ingnition           AMI - Advanced Microprocessor Ignition System
Engine oil capacity 1.2 Litres
Engine oil grade SAE 10 W 30 SJ grade

Transmission & Chassis

Cluch                Multiplate wet
Gear box           5 Speed constant mesh
Chassis Type    Tubular, diamond type

Suspension

Front      Telescopic hydraulic shock absorbers
Rear       Swing arm with nitrox GRS (Gas reservoir suspension)

Brakes
Front Brake             Dia 240 mm Disc
Rear Brake Disc Dia 220 mm
Rear Brake Drum           Dia 130 mm

Wheels & Tyres

Rim Size Front 18 x 1.85, 5 spoke cast wheels
Rim Size Rear 18 x 2.15, 5 spoke cast wheels
Tyre Size Front 2.75 x 18 - 42 P, Tubeless tyres
Tyre Size Rear 80 / 100 X 18 - 47 P, Tubeless tyres

Electricals

Battery 12 V -4 Ah, MF battery
Head Light 12 V -35 W / 35W - Halogen bulb (Multi - reflector type)
Tail Stop Lamp 12 V -0.5 W / 4.1W LED lamp
Turn Signal Lamp 12 V -10 W (Amber bulb) x 4 nos. (Multi -
reflector clear lens)

Dimensions

Length                2080 mm
Width                  765 mm
Wheelbase          1325 mm
Saddle Height      795 mm
Ground Clearance 145 mm
Fuel Tank Capacity 12.4 litres (Minimum)
Reserve              2.2 litres (Usable Reserve)
Kerb Weight       146 kgs
Minimum Turning    2.20 mtrs.
Features

> Flared fenders and tubeless tyres                                                                                                > Contoured visor

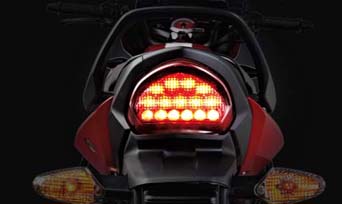

> Analog-Digital speed panel in chrome-tinged flame orange console                                  > Red hot LED tail light
> Ridged muffler cover with front and rear disc brakes
