TECHNICAL SPECIFICATION

--------------------------------------------------------------------------------------------------

Engine

Type Air cooled, 4-stroke single cylinder OHC

Displacement Power 223 CC

Max. Power 12.68 kW (17 BHP ) at 7000 rpm

Max. Torque 18.35 N-m @ 6000 rpm

Max. Speed 125 kmph

Acceleration 0 to 60 kmph In 3.8 Seconds

Bore x Stroke 65.5 x 66.2 mm

Carburettor VE, constant vacuum carburetor with CCVI

(Carb Controlled Variable Ignition)

Compression Ratio 9:1

Starting Kick start + Self start

Ingnition AMI -Advanced Microprocessor

Transmission & Chassis

Cluch Multiplate wet

Gear box 5 Speed constant mesh

Chassis Type Diamond Frame

Suspension

Front Telescopic hydraulic shock absorbers

Rear Swing arm with 5 step adjustable type hydraulic shock absorber

Brakes

Front Brake Disc, Dia 276 mm Disc

Rear Brake Disc Internal expanding shoe type (130 mm)

Wheels & Tyres

Tyre Size Front 2.75 x 18 -42P

Tyre Size Rear 100/90 x 18 - 56P

Electricals

Battery 12 V - 6 Ah, MF 7 (MF battery)

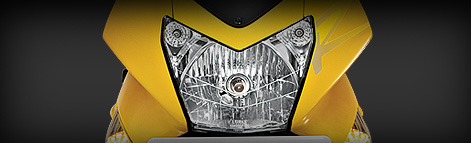

Head Light 35W / 35W - Halogen bulb (Multi-reflector -D.C type)

Tail Stop Lamp 5 / 21W x 2 Nos (Multi reflector)

Turn Signal Lamp 21W x 4 Nos (Amber bulb) (Clear lens multi-reflector)

Dimensions

Length 2125 mm

Width 755 mm

Height 1160 mm

Wheelbase 1355 mm

Ground Clearance 150 mm

Fuel Tank Capacity 15 ltrs. (Min)

Reserve 2 ltrs.

Kerb Weight 150 kgs
