TECHNICAL SPECIFICATION
--------------------------------------------------------------------------------------------------

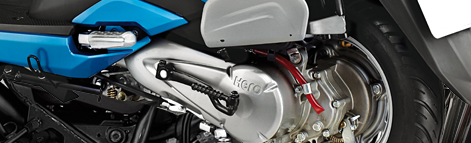

Engine

Type                  Air cooled, 4- stroke single cylinder OHC , Self start
Displacement      149.2cc
Max. Power           9.7 kW (13.2 Ps) @ 7500 rpm
Max. Torque          13.4 N-m @ 5000 rpm
Ingnition                 D.C - CDI Ignition System
Transmission & Chassis

Clutch Dry, Automatic Centrifugal Clutch with variomatic drive
Chassis Type High Rigidity Underbone Type
Suspension

Front Bottom Link with spring loaded hydraulic dampers
Rear Unit Swing with spring loaded hydraulic dampers

Dimensions

Wheelbase                 1240 mm
Ground Clearance 155 mm
Fuel Tank Capacity 5.3 litre ( Min )

Electricals

Battery                                12 V - 3 Ah , MF Battery
Head Light                12V - 35W / 35W - Halogen Bulb ( Multi-Reflector Type )
Tail Stop Lamp                12V - 5W / 21 W ( Multi-Reflector Type )
Turn Signal Lamp              12V- 10W ( Amber Bulb ) x 4 nos. ( Multi- Reflector - Clear Lens )
Brakes

Front Brake Drum; Internal expanding shoe type ( 130 mm ) (Combined Braking System)
Rear Brake Drum; Internal expanding shoe type ( 130 mm ) (Combined Braking System)
Wheels & Tyres

Tyre Size Front 90 / 90 x 19 - 52 P
Tyre Size Rear 110 / 90 x 17 - 60 P
Features

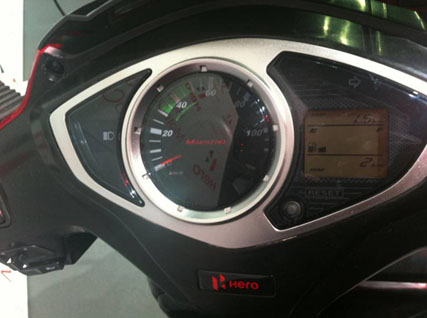

> Powerful 109cc engine                                                     > Digital Analog Combo Meter Console with Service Due Indicator
>  Comfortable wide seat                                                    > Combined Braking System for simultaneous application of front and rear brakes

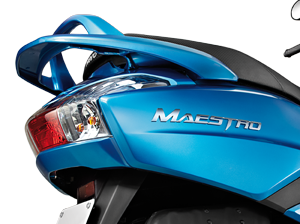

> Stylish rear grab rails                                                        > Multi-lever key with Magnetic head and shutter
>  Maintenance free battery                                                 > Bold trapezoidal multi-focal reflector headlamp and striking front visor
> Viscous Paper Pleated Air Filter                                     > Combination tail lamp and clear lens winkers
>  Large storage space
